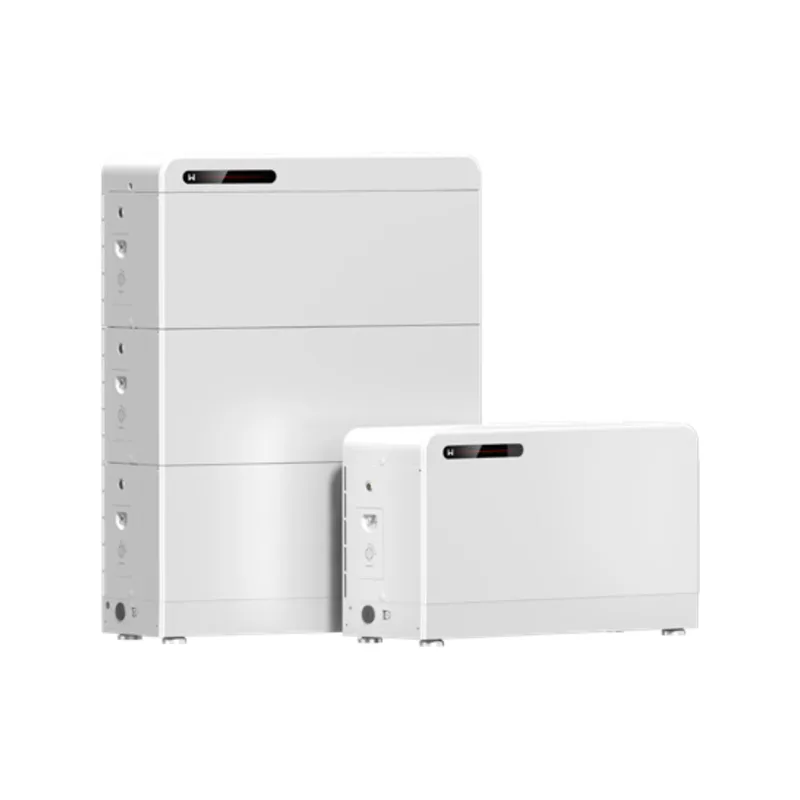

The GoodWe Lynx D G2 9 kWh is a high-voltage home battery from GoodWe's new-generation Lynx D G2 series. Each module is a standalone unit with its own battery management, holds 9.0 kWh with 8.85 kWh usable, and uses LFP (lithium iron phosphate) cells.
Modules stack, so the battery can grow with your needs, up to 12 in parallel. New and existing modules can be mixed. It can stand on the floor or mount on the wall, and it is IP66 rated.
Key Features
- 9 kWh Module: 9.0 kWh rated, 8.85 kWh usable (GW9.0-BAT-D-G20).
- Scalable: up to 12 modules in parallel, six in a single stacked column.
- Power: 4.5 kW charge and discharge a module, 6.75 kW peak for 10 seconds.
- Long Life: up to 10,000 cycles.
- Built-In Heating: charges from -20°C to 55°C.
- Multi-Layer Safety: aerosol fire suppression built in, thermal-electric separation and IP66 protection.
- Quiet: 27 dB or less.
- Size: 800 x 326 x 270 mm and 77 kg a module; floor stacked or wall mounted.
