Short answer: no mechanical ventilation, and no air conditioning. Modern lithium solar battery storage units are sealed, they don’t vent gas in normal operation, and they manage their own internal temperature. What they do need is clearance, shade, and a location chosen with some thought.
That last part is where installs go wrong. A battery bolted to a west-facing brick wall in Maitland spends every summer afternoon cooking, and it shows up in the warranty conversation seven years later.
Why the ventilation question keeps coming up
It’s a hangover from lead-acid.
Flooded and gel lead-acid banks produce hydrogen while charging. Hydrogen is explosive, so those installations needed genuine ventilation, ignition sources kept well clear, and often a dedicated battery room or vented enclosure. Plenty of older off-grid homes around Dungog and the upper Hunter still run setups like that, and the ventilation rules are there for good reason.
Lithium is a different animal. The LFP and NMC cells used in home batteries are sealed. Under normal operation they don’t off-gas at all, so there is nothing to vent. That’s why the explosive gas hazard signage and ventilation provisions in the installation standard apply to the chemistries that produce gas, not to a sealed lithium unit on your garage wall.
So airflow still matters. The reason just changed. You’re not venting gas anymore, you’re managing heat.

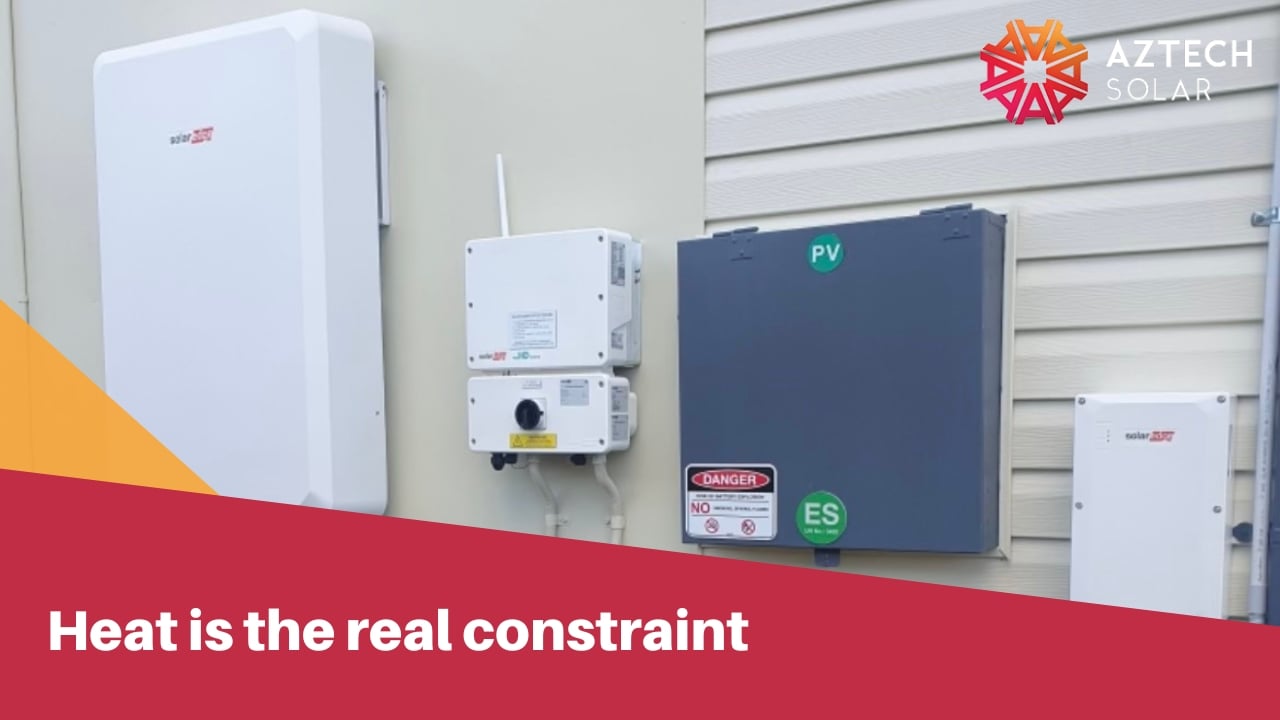

Heat is the real constraint
Every home battery has a rated operating window, and on paper most of them look generous.
| Condition | What it means in practice |
| Rated operating range | Roughly -20°C to 50°C on a Powerwall 3, -25°C to 55°C on a SigenStor |
| Where cells last longest | 15°C to 25°C ambient |
| Output derating | Powerwall 3 performance may be derated above 40°C |
| Charging in the cold | Restricted or blocked below 0°C on most lithium chemistries |
Figures from manufacturer datasheets. Exact limits vary by model and configuration.
Rated range and useful range are not the same thing. A battery will keep running at 48°C ambient. It just won’t run as well, and it won’t last as long.
Two things happen when a battery runs hot. First, output gets pulled back. The battery management system reduces charge and discharge current to protect the cells, so on the hottest afternoon of the year, exactly when you want the air conditioner running off stored solar, you may get less out of the system than you expected. Tesla’s own Powerwall 3 datasheet states performance may be derated above 40°C.
Second, calendar ageing speeds up. Heat is the main driver of capacity fade in lithium cells outside of cycling. A unit that spends five summers in direct sun will hold noticeably less charge than the same unit installed in a shaded garage, and most warranties are written with an assumed operating environment in mind.
Cold matters less here, but it isn’t nothing. Charging below 0°C causes lithium plating on the anode, which is permanent damage, so the management system either blocks charging or drops the current right back until the cells warm up. Frost is common enough around Singleton and Dungog in July for this to be worth a thought at design stage. In practice it usually just means the battery starts charging an hour later on a cold morning.
Where to put solar battery storage in your home
Garages win most of the time. They’re non-habitable under the standard, they’re shaded, ambient swings are smaller than outdoors, and there’s usually wall space near the switchboard.
Good locations
- Internal garage wall, ideally on the south or east side
- Shaded external wall under eaves, an awning, or a purpose-built hood
- Laundry, plant room, or another non-habitable space with a door
- Anywhere the unit sits out of direct sun for the whole afternoon
Locations to avoid
- Any wall catching full western or northern sun from midday onward
- Inside an unventilated steel shed, where roof space can pass 55°C on a 38°C day
- Roof cavities and sub-floor spaces, which trap heat and make service access miserable
- Tight alcoves and cupboards where the unit can’t shed heat into moving air
Manufacturers specify minimum clearances around each unit, typically 100mm to 300mm at the sides and above. Those numbers aren’t decoration. They exist so the enclosure can dump heat into air that’s actually moving. Boxing a battery into a cupboard that only just fits defeats the thermal design and will void the warranty on most products.
Coastal exposure is a separate problem. From Newcastle out to Port Stephens, salt-laden air corrodes enclosures, mounting brackets, and cable glands faster than most people expect. An IP66 or IP67 rating handles rain and dust, but it doesn’t make a unit immune to salt. Where an outdoor coastal mount is the only option, our solar installation team will push for a sheltered position and stainless fixings rather than relying on the ingress rating alone.
What AS/NZS 5139 requires
AS/NZS 5139 is the standard governing battery installation in Australia, and Amendment 1 was published on 19 December 2025. It’s mandatory now, so anything installed since then has to meet the updated rules. The Building Commission NSW advisory on the changes is the clearest public summary.
The parts that affect where your battery can go:
- No habitable rooms. Bedrooms, living rooms, kitchens, and studies are out. A garage is non-habitable, which is a large part of why garages are the default answer.
- Clearance from openings. A battery can’t sit within 600mm of the vertical side of a window or building ventilation opening serving a habitable room, or within 900mm below one.
- New exception for wide openings. Amendment 1 allows installation within 600mm of an opening wider than 900mm, such as a garage door, provided safe egress is maintained.
- Barriers to habitable rooms. Exempt materials used as a barrier now need a minimum thickness of 6mm. Plenty of standard internal wall linings don’t meet that on their own.
- Inverters are now allowed in the restricted location. They’re treated as an associated appliance, which makes all-in-one units considerably easier to place.
- Egress clearance is enforced. New figures cover clearances in corridors, hallways, and to doors. A battery can’t block the way out.
Notice what isn’t in that list. There is no mechanical ventilation requirement for a standard sealed lithium unit in a home. The rules are about separation, egress, barriers, and fire, not airflow.

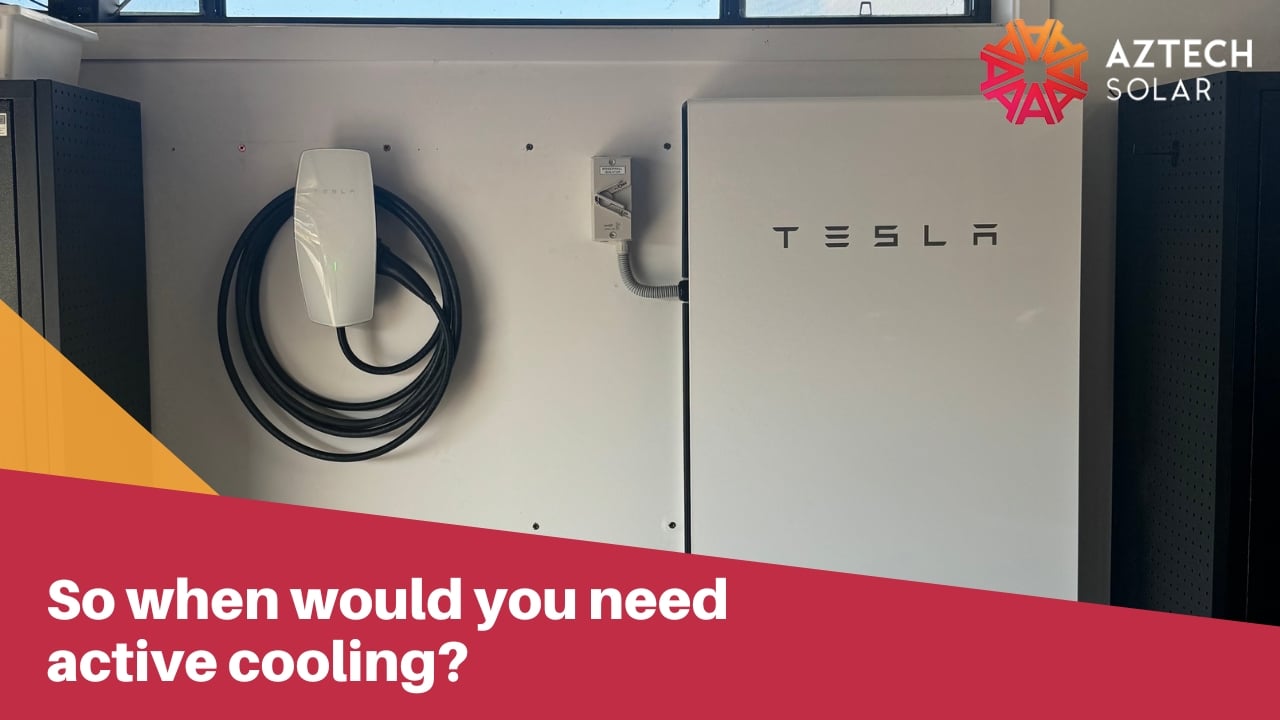

So when would you need active cooling?
Rarely, in a house.
Good home batteries handle their own thermal management. The Sigenergy SigenStor uses active air cooling with per-pack temperature monitoring, an IP66 enclosure, and a rated range of -25°C to 55°C. The Tesla Powerwall 3 is passively cooled with IP67 protection on the battery and power electronics. Neither one needs help from a split system.
Cooling the space becomes a real conversation in three situations: large commercial installations with hundreds of kilowatt hours in one room, batteries in genuinely hot sealed spaces where relocation isn’t possible such as a shipping container or an airless plant room, and inland sites where 45°C days are routine rather than occasional. For a typical Newcastle or Lake Macquarie home, picking the right wall does more good than any cooling system would.
What a good installer checks before mounting anything
- Sun exposure on the proposed wall across a full summer afternoon, not just at the time of the site visit
- Distance to windows, vents, and doors, measured against the restricted location rules
- Wall construction and whether the barrier to any adjacent habitable room meets the 6mm requirement
- Manufacturer clearance figures for that specific model, front, sides, and above
- Cable run length to the switchboard, because a shorter run in a hot spot is a false economy
- Salt and dust exposure, and whether a sheltered position is achievable
- Service access, so a technician can get to the unit in eight years without dismantling anything
If someone quotes you a battery without walking the site and talking through placement, that’s a reasonable point to ask more questions.
The short version
Solar battery storage doesn’t need ventilation ducting, and it doesn’t need climate control. It needs shade, breathing room, a non-habitable wall that meets the clearance rules, and an installer who thinks about February before they drill.
